Durable 7x7 Customized 304 316 Woven Stainless Steel Wire Rope Net
Aviary Mesh
Stainless Steel Wire Rope Net Introduction:
Stainless steel wire rope net is hand-woven from Material 304 or
316 stainless steel ropes by molds. It is a creative product that
perfectly replaces the fences and bars used in zoological gardens,
so it is called zoo mesh by clients. Stainless steel wire rope mesh
for enclosure fences (alternate names: stainless steel cable mesh,
flexible metal mesh, stainless steel wire rope woven mesh,
stainless steel knotted netting, stainless steel wire rope ferrule
mesh, hand-woven stainless steel mesh, stainless steel wire rope
woven mesh, hand woven multiple wire mesh).
Specifications Of Stainless Steel Wire Rope Net :
| Stainless Steel Wire Rope Net |
| Item No.s | Cable Structure | Wire Diameter | Mesh Eye Size(W x H) | Normal Break |
| | inch | mm | inch | mm | lbs |
| YT-3212F | 7x19 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 7x19 | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 7x19 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 7x19 | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 7x19 | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 7x7 | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 7x7 | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 7x7 | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 7x7 | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 7x7 | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 7x7 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 7x7 | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 7x7 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 7x7 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 7x7 | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 7x7 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 7x7 | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 7x7 | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 7x7 | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 7x7 | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 7x7 | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |

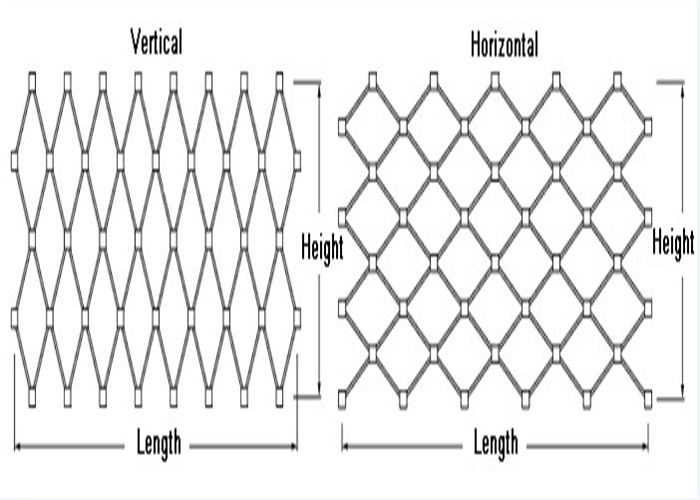

Mesh Orientation:
There are two kinds mesh orientation,one is Horizontal and the
other is Vertical.Please check the following details.
Stainless Steel Cable Mesh Project Show:
Mesh Details:
Aviary mesh of Shijiazhuang Zoo
Material : stainless steel 316
Rope diameter : 1.6mm (7*7)
Hole Aperture:40*70
Normal Break : 676 Ibs
Advantages :
1.solid and durable. |
| 2. The mesh Hole size and diameter can be modified. |
3. corrosion resistance. |
| 4. High strength, strong toughness, free-angles curving and fold,
easy for transportation and installment. |
5. Anti-corrosive, resist the rust, can be repeated use. |
6.All models, shapes and materials can be customized. We have our
own factory |
How to place the order ?
- Rope diameter and mesh aperture : such as
1.2mmx25x25mm,2.0mmx60x60mm etc
- Opening orientation : H or V
- The height and length per piece
- Drawing is necessary if available
- Please tell us the quantity you need
- When we get your confirmations, then we will be able to offer our
exact price timely.
What is feature of wire rope mesh ?
1. Mesh designed under high break loading capacity.corrosion
resistant.
2. 100% install guarantee.precsion panel dimension.
3. Suit tube frame or tension rope structure.
4. Irregular shape,large piece of mesh can be manufactured.
5. Lightweight : good flexibility, impact resistance, solid and
durable overall structure
6. Durable : It will not change color under long-term sunlight and
is resistant to corrosion in humid environment
7. Good perspective : Flat mesh surface, good permeability,
luxurious appearance and novel style
8. Various specifications : The hole diameter rope diameter can be
designed arbitrarily, and the installation is convenient
9. Strong cushioning force : Good elasticity, strong cushioning
force and can withstand strong impact
Where the mesh we sold?
United
Kindom,USA,Canada,Czech,Slovakia,Spain,France,Creaze,Singapore,Japan,Australia
etc.
Where will the stainless steel wire rope net be used?
Widely used in zoo, wildlife park, garden decoration and similar
environment of the zoo cage, zoo fence, Liger Tiger fence, leopard
fence, Lion fence, tiger fence, lion cages, tiger cages, monkey
fence, leopard cages, birds, forest network, garden decoration and
so on.
Our Promise:
1. Delivery within delivery time.
2. If you want to have your own mark on the product, we will
protect your information.
3. The best price is to retain the most sincere customers.
4. 24 hours online, please contact us if you have any questions.
