Diamond Soft Handrails 2.4m Length Stainless Steel Wire Rope Mesh Panels At Both Sides

Handrails Stainless Steel Rope Mesh Systems:

Handrails stainless steel wire rope mesh panel is divided into the natural colour stainless steel wire rope mesh and the black stainless steel wire rope mesh net. The montted stainless steel wire rope mesh panel is intertwined with stainless steel wire rope to form a knot and connect. This minimalist process is the most dazzling product of stainless steel wire rope netting products. While providing the same intensity, visual impairment is significantly reduced and easier to disappear. If there is no troublesome light reflection, it is almost entirely invisible at a certain distance.

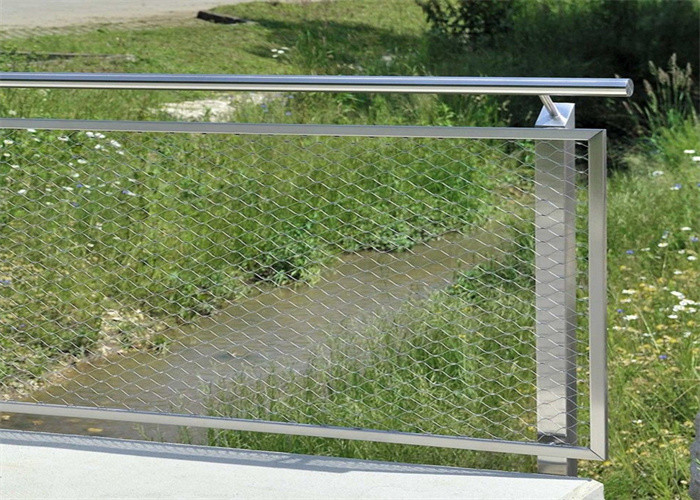

The diamond stainless steel wire rope mesh produced by Yuntong; The x tend and safety railing balustrade infills consists of a non rust stainless steel cable rope mesh stretched and pre-mounted on high-quality welded steel frames. With a simple and durable structure, it is preferred to various types of balustrade applications from residential, semi-public spaces to public spaces. The safety diamond stainless steel wire rope cable mesh is widely used in the handrails,railings,balustrade ,balcony ,at both side of the bridge and commercial guardrails infills for falling protection or anti-climbing.

Specifications For Handrails Stainless Steel Rope Mesh :

The ferrule balustrade railing stainless steel rope mesh fencing is made with multiple cores twisted together.

The common specifications of the stainless steel rope mesh fencing as the following information:

1. Cable structure :

• 7*7 (usually the wire diameter is less than 3.0mm)
• 7*19 (usually the rope diameter is more than 3.0mm).

2. Rope diameter : 1.2mm, 1.6mm, 2.0mm, 2.4mm,3.0 mm

We provide the regular specifications for your reference. For customized specifications, please contact us directly. The specifications for ferrule balustrade railing stainless steel rope mesh fencing are as follows:

Material:

Ferrule balustrade railing stainless steel rope mesh is made of AISI 304 / 316 stainless steel rope material, and the structure is 7x7 or 7x19. As the foundation of stainless steel rope mesh, the material has outstanding flexibility, high tensile, corrosion resistance, and long service life, which depends on the stainless steel material.AISI304 / 316 is austenitic stainless steel with excellent plasticity, strength, and high-temperature resistance. It is widely used in the balustrade balcony railing mesh,architecture mesh,fall protection netting,plant trellis climbing mesh net,and it is also a standard and classical zoo mesh for bird aviary enclosure.

Different Mesh Types :

There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.

Picture	Mesh Types	Wire Diameter	Cable Structure	Details	Material
	Woven Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7		aisi304,aisi304L,aisi316,aisi316L
	Ferruled Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7
	Woven Type	2.4mm,3.0mm,3.2mm,4.0mm	7*19
	Ferruled Type	2.4mm,3.0mm,3.2mm,4.0mm	7*19

​

Available Colors:

If you are interested in our guard rails systerm stainless steel rope mesh net product please feel free to contact us.

Installation Steps Guide:

The installation of stainless steel wire rope mesh panel is easier than you might expect and requires only a minimum of tools, matching frames and meshes in order and according to actual conditions is the key to success, ensure that the stainless steel rope mesh fencing has a uniform focus so that the correct tension to maintain the overall structure is safety, beautiful, and flexible.

• Firstly

Determine the length and height of handrails stainless steel wire rope mesh direction you received(make sure the stainless steel wire rope mesh is in the same directions as the frame);

• Secondly

Stretch the mesh, use Cable-Ties fixed mesh angle on the frame, and from top to bottom in order to secure both sides. (Note: Fixed both sides of the same time downward stretch mesh to shape the mesh opening)

• Thirdly

Using the single stainless steel wire rope insert the mesh opening in the edge into the frame by winding, this method is the most common way, fast and strong.(Wrap the stainless steel wire rope around the frame)

• Finally

Press the ferrule with the pliers tool, and cut off cable-ties belt. Now, each of the mesh angle is 60°

​

Applications of the hanrails stainless steel rope mesh panel:

1. Staircase & balustrade infills : high strength and safaty stair and balustrade without affecting air and light to enter
2. For bridge as fall protection safety nets : Protect vehicles and pedestrians from falling into the river
3. Balustrade mesh on the both side of the path : anti-climbing balustrade minimize potential falling dangers
4. Balcony safety mesh : elegant balcony infills without blocking your sight

​Cases:

Safety Net For Helideck In Germany

Material : SS 316L

Rope Diameter : 3.0mm

Mesh Aperture: 120*120mm

Width and height : 1.5*90m

Panel Shape : Rectangle

End type : H6 (by eye ferrules)

Quantity : 135 square meters

Packing And Delivery Details :

• Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

• Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

• Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.

• As customer's requirements

​About Us:

We are a manufacturer specialized in Stainless steel rope mesh fence for railing, we do export from 2007, have more than 13years of exporting experience, now we have more than 50+ stable customers in the world, such as England,Germany, Austria,Denmark, France, Australia, Netherlands, Spain, Canada, USA etc, further more, we have very professional engineer can provide different install method, and we also can provide some different install fittings for your choice.

Several important projects have been completed by Yuntong company in recently years, provide stainless steel ferrule rope mesh and service in good quality for our clients, help them to design the options and install the stainless steel ferrule rope mesh net, and received good reputation from our clients around the world.

​FAQ:

Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.

Q : What type of metal wire mesh fencing does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .

Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.

Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.

Q : Which countries do you export to?

A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

​
